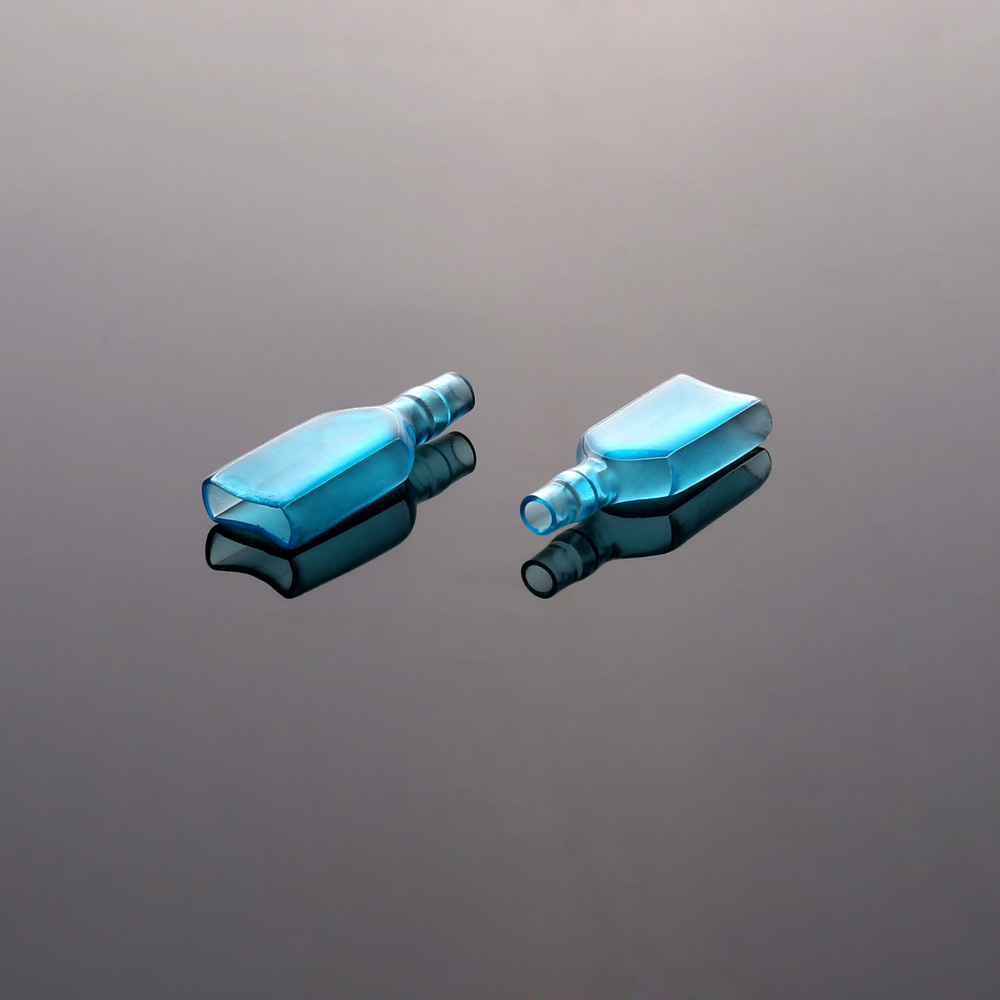

  • DR系列_002_2667
  • DR系列_003_2667
  • DR系列_005_2667
  • DR系列_007_2667
  • DR系列_008_2667
  • Spade Connector Cover | Vinyl Terminal Sleeve | Vinyl Terminal Covers

    • 500000PCS Daily Production Capacity
    • Flammability Rating UL49V-0
    • 30+ Years Experience Manufacture
    • Annual Sales USD11 Millions
    • Our Distributors Everywhere in Domestic Markets

    Welcome to your inquiry now!

    • Description

    Spade Connector Cover

    Spade connector cover is main products of pvc terminal sleeve, it can protect terminals not touch with outside for insulation function.

    Vinyl Terminal Sleeve

    Insulation Terminal Sleeve, Spade Connector Cover, Wire Terminal Cover, Flag Terminal Cover, Flag Insulation Sleeve,

    Type:Wire Cap Terminal Lugs

    Brand Name: Zhongtian

    Model Number: DR110ES/DR187ES/DR250ES/DR250RF/DR250RS

    Material: Soft PVC (Vinyl)

    Color: Clear/Transparent Blue

    Hardness: 70(±5) Shore A

    Flammability Rating: V1/VW-1/UL 94-V0

    Temperature: 70℃/105℃

    Rated Current: 10A

    Rated Voltage: 500V AC/DC

    Insulation resistance: ≥100MΩ

    Dielectric Withstand Voltage: AC 2500V/Min (5mA) No Breakdown

    Application: Low voltage, for full insulation of uninsulated crimp terminal

    Certificates: ROHS/REACH/UL/CA PROP65/NO PHTHALATES

    Capacity: 5 million pieces per day

    Lead Time:

    Qty.(Pieces) Stock Available <50K 50K – 200K >200K
    Est. Time 36 hours 2-3 days 3-5 days 5-7 days

    Spade Connector Cover,pvc terminal cap

    Vinyl Terminal Covers

    Item Test Standard Test Method Result
    Appearance Clean, Smooth

    No Bubble

    Visual Inspection PASS
    Aging Test 168Hrs@136°C without aging Aging Box PASS
    Insulation Resistance DC 500V, Insulation Resistance R≥200MΩ Insulation Resistance Tester PASS
    Dielectric Withstand Voltage Test AC 2500V/Min (5mA) No Breakdown Dielectric Withstand Voltage Tester PASS
    Corrosion Resistance Company standard: Q/HT-2004 Corrosion Device PASS
    Flammability Rating UL 94 V-0 / VW-1 Flame Burning PASS

    Terminal Wire End Caps Package

    Packaging: Inside Packaging: 2,000pcs/Bag(PE Bag)

    Outside Packaging: Carton Box
